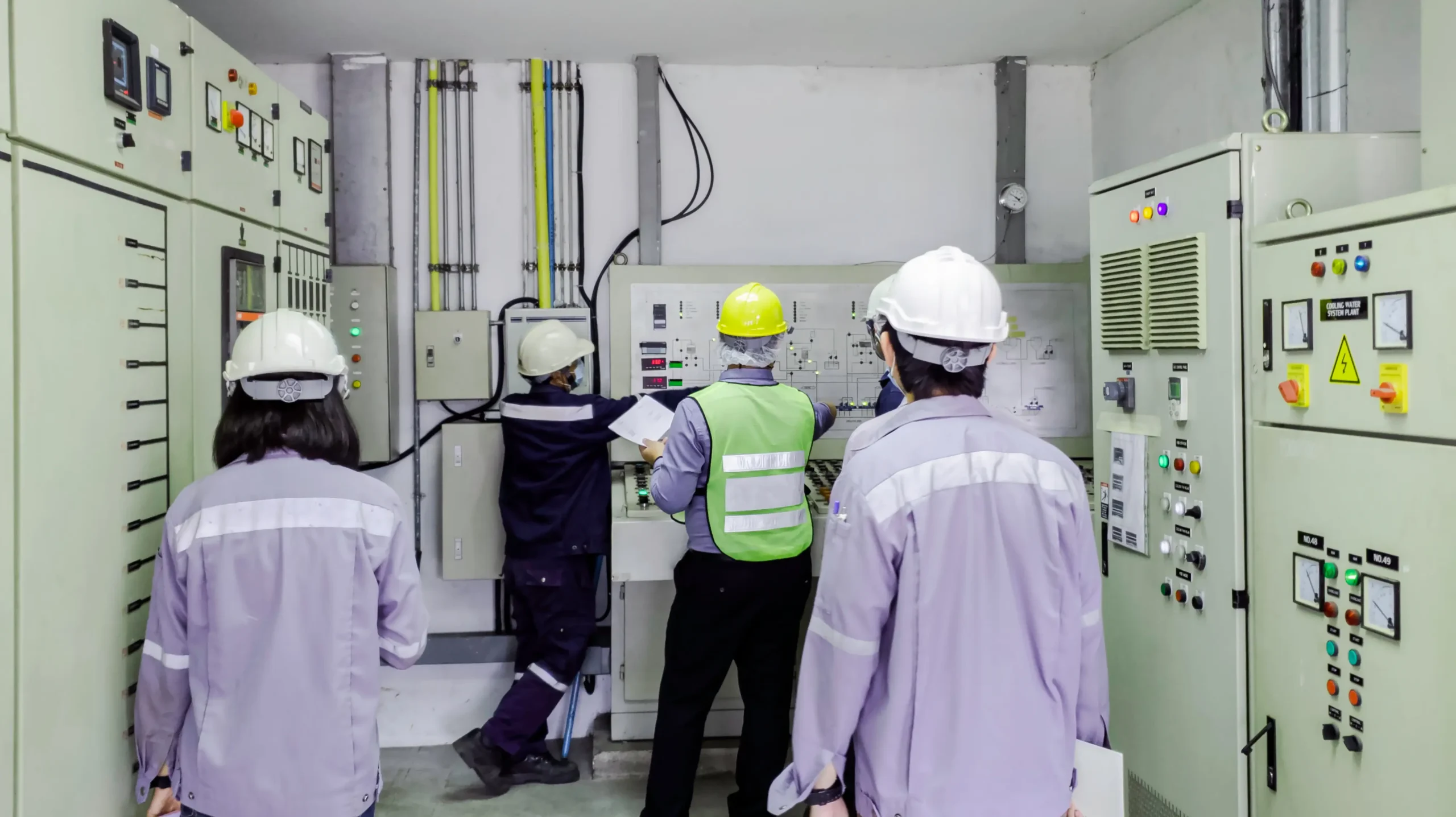

Legacy equipment can remain in service for years after the original manufacturer has stopped producing or supporting individual components. When the sheet metal enclosure, protective cabinet, or equipment housing is damaged, corroded, outdated, or no longer provides the access or protection the equipment or electronics require, replacing the enclosure is an economical way to keep the equipment operating.
A replacement enclosure does not necessarily need to be an exact copy of the original. However, it does need to work with the existing equipment, mounting points, connections, and operating environment. Before a replacement enclosure is fabricated, several details should be considered to make sure the new enclosure fits the equipment and functions as intended.
Document the Existing Sheet Metal Enclosure
Many legacy equipment projects begin with incomplete information. Original drawings may be missing, previous modifications may not be documented, and the enclosure may differ significantly from the original design. Looking only at the original enclosure dimensions may not provide enough information to create a replacement that works with the equipment as it exists today.
Accurate measurements are critical. Overall dimensions are important, but they are rarely enough. Mounting hole locations, door openings, panel dimensions, attachment methods, penetrations, hardware placement, and clearances around adjacent equipment should also be documented. Photographs can provide context, but they should supplement verified dimensions rather than replace them.
It is also important to understand how the enclosure connects to the surrounding equipment. A replacement enclosure may fit the original dimensions but still create installation problems if conduit entries, mounting surfaces, or interface points are not properly documented.
Decide What Should Be Reproduced and What Should Be Improved
Some dimensions of a replacement enclosure can change without affecting the equipment. Others cannot. Identifying those fixed points early helps separate the features that need to be replicated from those that can be improved. Mounting holes and attachment points are often among the most important dimensions to maintain. The same may be true for openings for controls, displays, connectors, ventilation, wiring, or other components that need to remain accessible. Internal clearance can also be critical if the enclosure surrounds existing electrical or mechanical components.
A replacement project also provides an opportunity to evaluate whether every feature of the original enclosure should remain unchanged. Some elements may still serve the application well, while others may no longer make sense for the equipment as it is used today. For example, it may have limited access, awkwardly positioned openings, insufficient space for updated components, or other characteristics that make maintenance more difficult. And damaged panel layouts, difficult-to-use door arrangements, recurring corrosion areas, or past field modifications can reveal design features that created problems during the enclosure’s service life.
Replacing an enclosure does not always require replicating every detail if a different fabrication approach better supports the current application. The objective is to preserve the features required for compatibility while determining whether other aspects can be improved without creating problems elsewhere in the equipment.
Evaluate Material Condition and Operating Environment
The reason an enclosure failed can provide valuable information for its replacement. Corrosion, abrasion, impact damage, moisture exposure, chemical exposure, and repeated maintenance activity can all contribute to enclosure deterioration. Understanding these conditions helps determine whether the original material and construction remain appropriate.
In some cases, the existing approach may still be suitable, and the enclosure simply reached the end of a long service life. In other situations, operating conditions may justify a different material, thickness, or fabrication approach. Environmental conditions should be reviewed in relation to the actual application rather than relying solely on what was used historically. Equipment operating conditions, facility processes, and maintenance requirements may have changed since the enclosure was first installed or were not fully considered..
Plan for Installation and Maintenance Before Fabrication Begins
A replacement enclosure must fit the installation conditions and provide access for maintenance. Many legacy systems are surrounded by structures and other equipment that were added after the original installation. In some cases, the original enclosure was installed before nearby equipment existed.
Evaluating the installation environment early helps prevent surprises during replacement. Questions should include whether the enclosure can reach the installation location, whether surrounding equipment limits access, and whether portions of the enclosure should be fabricated separately to simplify installation. Addressing these issues before fabrication begins is usually easier than modifying a completed enclosure in the field.
Work With an Experienced Fabrication Partner
Legacy equipment projects often require more than manufacturing from an existing drawing. Information may come from a combination of measurements, photographs, sketches, existing components, and field observations. Translating that information into a fabricated enclosure requires careful review before production begins.
S&R Sheet Metal works on custom fabrication projects for industrial equipment, replacement components, and existing facility conditions. We can review drawings, measurements, sketches, and project requirements to help determine the fabrication approach that best fits the application. If a legacy enclosure needs replacement, we can help evaluate the requirements and produce a replacement enclosure built around the equipment in place today.
Contact us to discuss your replacement sheet metal enclosure.
